Vertical Bend

About Vertical Bend

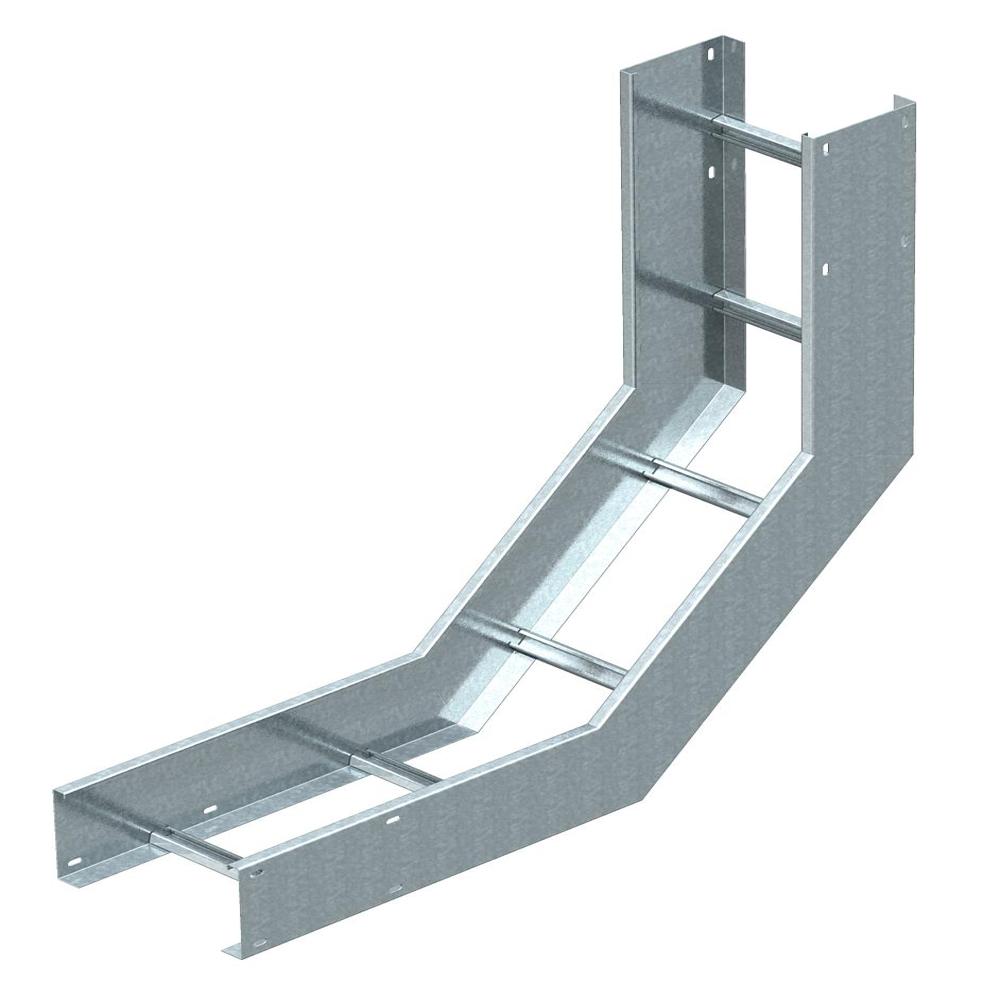

A Cable Tray Vertical Bend is a fitting used in cable tray systems to change the direction of the cable run in the vertical plane (upward or downward). It helps in smooth routing of cables without causing damage or sharp bends.

Types of Vertical Bends:

1. Vertical Inside Bend (Riser Inside)  Used when the tray goes upward from the inside.

2. Vertical Outside Bend (Riser Outside) Used when the tray goes downward from the outside.

Key Features:

• Compatible with perforated, ladder, and solid bottom cable trays

• Made from GI / MS / Aluminium / Stainless Steel

• Available in standard angles (30, 45, 60, 90)

• Uniform radius for safe cable bending

• Supplied with pre-galvanized / hot-dip galvanized / powder-coated finish

Advantages:

• Protects cables from mechanical stress

• Maintains minimum bending radius

• Easy installation with couplers and fasteners

Applications:

• Electrical and instrumentation cable routing

• Industrial plants and commercial buildings

• Power stations and infrastructure projects
